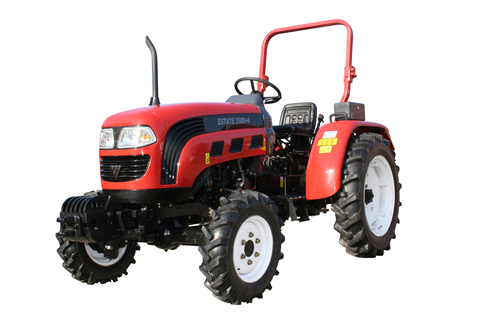

Foton 2500 series (28hp) 2wd and 4wd
At home in gardens, paddocks and equestrian yards alike, the 2500 series is compact, agile and versatile. Available both 2 and 4 wheel drive, the 2500 series is the perfect size for the smallest of tasks, whilst having enough power to tackle any job that demands a durable, compact tractor.
JUST OUT!!
New Full Cab series now available…
Contact us for more details…
Standard Features
Direct Injection Diesel Engine
The 28hp direct injection diesel engine boasts both reliability and environmental friendliness. It supplies a large output and offers low fuel consumption.
8 x 8 Shuttle Transmission
The shuttle transmission allows a diverse range of high and low range gearing to meet different working requirements.
Selectable 4 Wheel Drive
4 Wheel Drive can be easily selectable by a conveniently located lever.
Twin Speed PTO (540/1000rpm)
The twin speed PTO allows the tractor to operate at either 540 or 1000 rpm to meet every implement requirement.
3 Point Linkage
With an adjustable 3 point linkage complete with multiple position stabilisers, the attachment of implements is made easier.
Power Steering
Make easy work of turning the tractor with power steering.
Twin Live Drive Clutch
With the twin position live drive clutch, both the drive and the PTO transmissions are quickly and easily selectable.
5 Hydraulic Spool Valves
The rear mounted spool valves allow the fitting of a choice of implements and attachments from tipping trailers to back hoes.
Roll Over Protection System
HSE Certified folding roll over protection system for essential safety. Comfortable seat and seatbelt also fitted as standard.
Choice of Agricultural or Turf Tyres
Choose between agricultural or turf tyres depending on your intended usage.
European Vehicle Type Approval
Conformation that Foton Tractors meet European Performance and Safety standards.
EC Directive 2003/37/EC
Engine
| Engine | |
| Engine Model | National Engines |
| Engine Gross Power | 28 hp (19.7Kw) |
| Rated Speed | 2350 rpm |
| No. of Cylinders | 3 Cylinders |
| Fuel Type | Diesel |
| Aspiration | Natural |
| Displacement | 1694cc |
| Fuel Tank Capacity | 20 litres |
| Pre Heating System | Glow Plugs |
Transmission
| Transmission | |
| Transmission | Manual |
| No. of Travel Speed Forward/Reverse | 8 Forward 8 Reverse |
Power Take Off
| Power Take Off | |
| P.T.O. Type | Dual Speed, Semi Independent |
| P.T.O. Power | 16.5 Kw |
| P.T.O. Speed | 540/1000rpm |
Brakes and Clutch
| Brakes and Clutch | |
| Brakes | Dry disc |
| Clutch | Dry, dual stage |
Dimensions
| Dimensions w/Ag Tyres | 4WD | 2WD |
| Wheelbase | 1743mm | 1690mm |
| Front Tread | 1215mm | |
| Rear Tread | 1100 ~ 1350mm | |
| Ground Clearance | 254mm | 348mm |
| Turning Radius w/Brake | 2600mm | |
| Turning Radius wo/Brake | 3100mm | 3000mm |
| Length with 3 point linkage | ||
| Width | ||
| Height from top of ROPS |
Hydraulics
| Hydraulics | |
| Total Pump Flow | 27 litres/minute |
| Max. Hydraulic Working Pressure | 18.5 Mpa |
| No. of Spool Valves | 5 |
3 Point Linkage
| 3 Point Linkage | |
| Standard Category | Cat. 1 |
| Lift Capacity | 4.1 Kn |
| Control Type | Position |
Weight
| Weight | 4WD | 2WD |
| Weight with Ag Tyres w/ROPS | 1230 kg | 1150 kg |
Tyres
| Tyres | |
| Ag 4WD Front | 6 – 14 |
| Ag 4WD Rear | 9.5 – 24 |
Standard Equipment
| Standard Equipment | |
| Foldable ROPS (90 and 45 degree positions) | |
| PTO Guard | |
| Swinging Draw Bar | |
| Rear PTO | |
| Dry Dual Clutch | |
| Rear Differential Lock | |
| 3 Point Hitch with multiple position stabiliser | |
| Comfortable, adjustable sprung seat with seat belt | |
| Front Weights with Tow Hitch | |
| Lockable Tool Box | |
| 5 Hydraulic Spool Outlets for Hydraulic Implement Control | |
| Hydrostatic Power Steering | |
| Hand and Foot operated throttle | |
| Road Legal head lights and rear ploughing light | |
| Manual Engine Stop Knob | |
| Selectable 4WD | |
Optional Equipment
| Optional Equipment |
| www.danelander.co.uk |

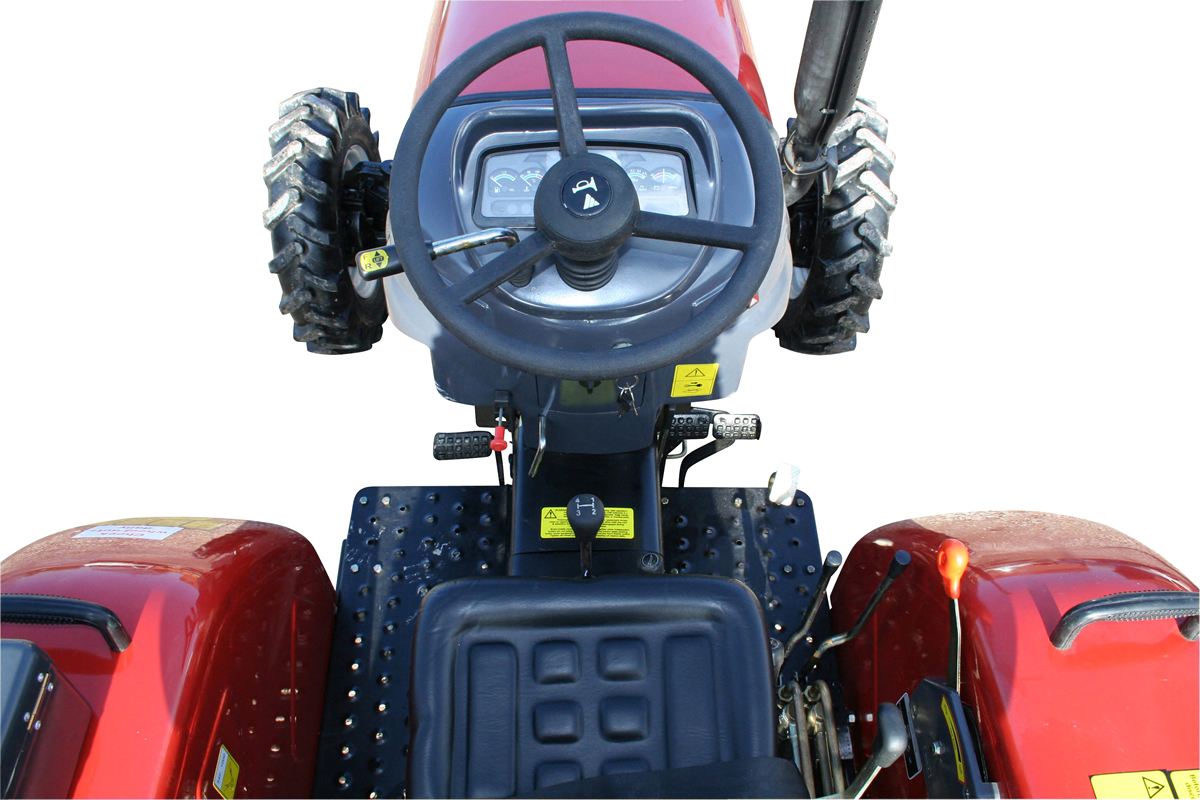

Instrument Panel
| Instrument Panel |
| Hour meter |
| Coolant temperature gauge |
| Electrical tachometer |
| Fuel gauge |
| Engine oil pressure warning light |
| High Beam, Indicator, hazard Warning Lights |
| Glow Plug Light |
| Battery Charging Warning Light |
