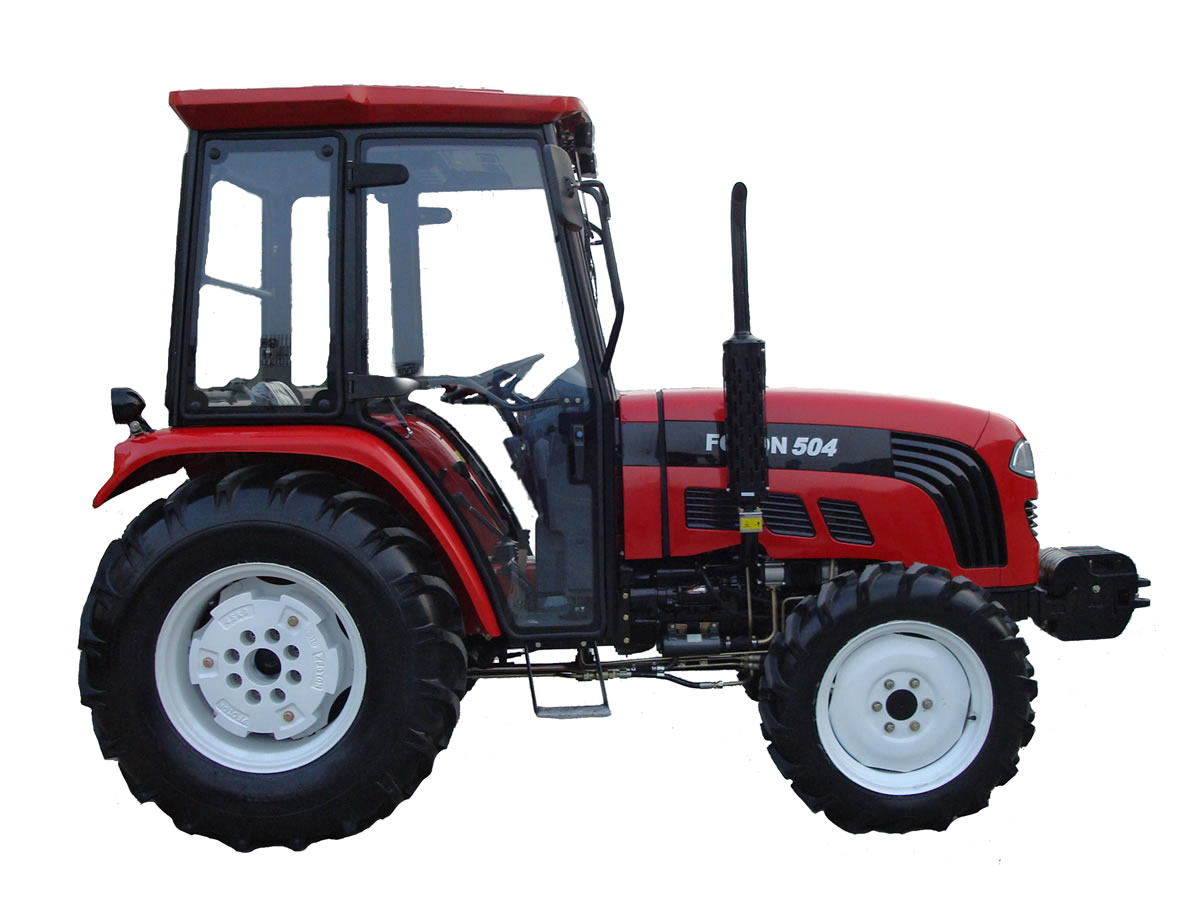

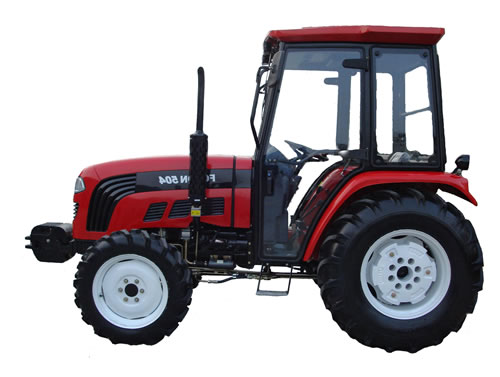

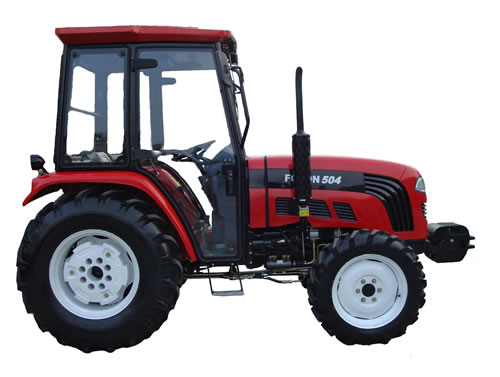

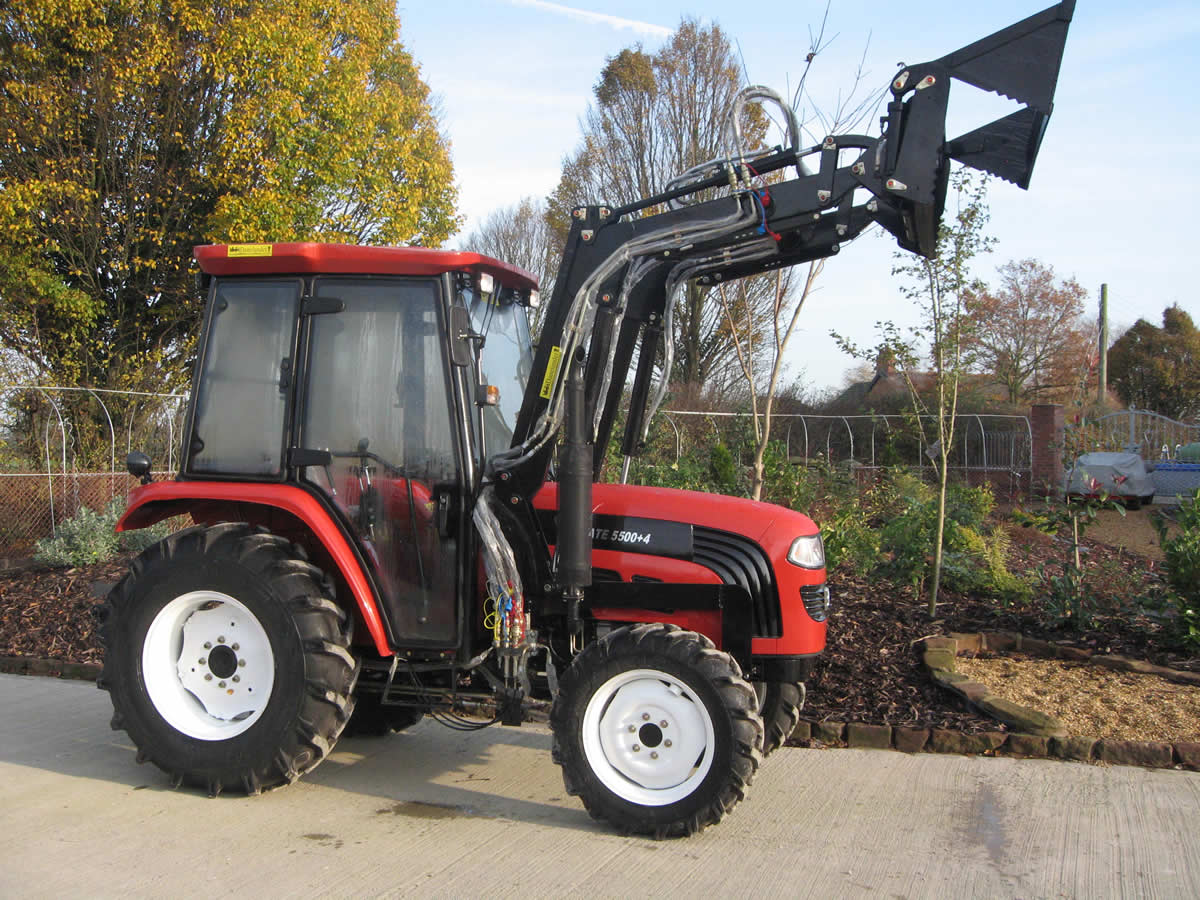

Foton 5500 series (55hp) 4wd



At home in gardens, paddocks and equestrian yards alike, the 2500 series is compact, agile and versatile. Available both 2 and 4 wheel drive, the 2500 series is the perfect size for the smallest of tasks, whilst having enough power to tackle any job that demands a durable, compact tractor.

JUST OUT!!
New Full Cab series now available… Contact us for more details…

Standard Features

Direct Injection Diesel Engine

The 28hp direct injection diesel engine boasts both reliability and environmental friendliness. It supplies a large output and offers low fuel consumption.

8 x 8 Shuttle Transmission

The shuttle transmission allows a diverse range of high and low range gearing to meet different working requirements.

Selectable 4 Wheel Drive

4 Wheel Drive can be easily selectable by a conveniently located lever.

Twin Speed PTO (540/1000rpm)

The twin speed PTO allows the tractor to operate at either 540 or 1000 rpm to meet every implement requirement.

3 Point Linkage

With an adjustable 3 point linkage complete with multiple position stabilisers, the attachment of implements is made easier.

Power Steering

Make easy work of turning the tractor with power steering.

Twin Live Drive Clutch

With the twin position live drive clutch, both the drive and the PTO transmissions are quickly and easily selectable.

5 Hydraulic Spool Valves

The rear mounted spool valves allow the fitting of a choice of implements and attachments from tipping trailers to back hoes.

Roll Over Protection System

HSE Certified folding roll over protection system for essential safety. Comfortable seat and seatbelt also fitted as standard.

Choice of Agricultural or Turf Tyres

Choose between agricultural or turf tyres depending on your intended usage.

European Vehicle Type Approval

Conformation that Foton Tractors meet European Performance and Safety standards.
EC Directive 2003/37/EC

Engine
Engine Model National TDI
Engine Gross Power 55 hp
Rated Speed 2300 rpm
No. of Cylinders 4 Cylinders
Fuel Type Diesel
Aspiration Natural
Displacement -
Fuel Tank Capacity 150 litres
Pre Heating System Glow Plugs



Transmission
Transmission Manual
No. of Travel Speed Forward/Reverse 16 Forward 8 Reverse

Power Take Off
P.T.O. Type Dual Speed, Semi Independent
P.T.O. Power 54 Kw
P.T.O. Speed 540/1000rpm

Brakes and Clutch
Brakes Dry disc
Clutch Dry, dual stage

Dimensions w/Ag Tyres 4WD
Wheelbase 2236mm
Front Tread 1610mm
Rear Tread 2280mm
Ground Clearance 379mm
Turning Radius w/Brake 3600mm
Turning Radius wo/Brake 4200mm
Length with 3 point linkage
Width
Height from top of ROPS

Hydraulics
Total Pump Flow 33.6 litres/minute
Max. Hydraulic Working Pressure 16 Mpa
No. of Spool Valves 4

3 Point Linkage
Standard Category Cat. 2
Lift Capacity 16 Kn
Control Type Position, Draught Mixed

Weight 4WD
Weight with Ag Tyres w/ROPS 3990 kg

Tyres
Ag 4WD Front 12.4 – 24
Ag 4WD Rear 18.4 – 30

Standard Equipment
Deluxe Cab with heater, sun roof, escape hatch
PTO Guard
Swinging Draw Bar
Rear PTO
Dry Dual Clutch
Rear Differential Lock
3 Point Hitch with multiple position stabiliser
Comfortable, adjustable sprung seat with seat belt
Front Weights
Lockable Tool Box
4 Hydraulic Spool Outlets for Hydraulic Implement Control
Hydrostatic Power Steering
Hand and Foot operated throttle
Road Legal head lights and rear ploughing light
Manual Engine Stop Knob
Selectable 4WD
Creeper Gear Box
Wet disc brakes

Optional Equipment
www.danelander.co.uk

Instrument Panel
Hour meter
Coolant temperature gauge
Electrical tachometer
Fuel gauge
Engine oil pressure warning light
High Beam, Indicator, hazard Warning Lights
Glow Plug Light
Battery Charging Warning Light
Parking Brake Indicator

More Photos Coming Soon
