Foton 4000 series (40hp) 2wd and 4wd



Features for Foton 4000 series (45hp) 2wd and 4wd

Whether you are topping the paddock, ploughing the field or scraping out the cow shed the impressive power and smooth handling of the 4000 series gives you all the benefits of a large tractor packed into a compact and manoeuvrable workhorse. Available In both 2 and 4 wheel drive and with a choice Agricultural of Turf tyres, the 4000 series excels itself on the pristine surfaces attributed to groundcare as well as making easy work of the harshest terrain. 4000 series in action

JUST OUT!!
New Full Cab series now available…
Contact us for more details…

Standard Features

Direct Injection Diesel Engine

The 45hp direct injection diesel engine from Foton delivers a huge torque output to rival bigger engines, whilst retaining its environmental friendliness. A new addition to this reliable engine is a manifold heater for easy cold starting.

8 x 8 Shuttle Transmission

The 8 Forward x 8 Reverse and choice of high and low gearing allows for a diverse power range to meet different working requirements. The independent forward and reverse shuttle allows for rapid directional transfer at the touch pf a lever.

Selectable 4 Wheel Drive

4 Wheel Drive can be easily selectable by a conveniently located lever.

Twin Speed PTO (540/1000rpm)

The twin speed Power Take Off Drive allows the PTO to operate at 540 or 1000rpm to meet a diverse range of implement requirements.

3 Point Linkage

With an adjustable 3 point linkage complete with multiple position stabilisers, the attachment of implements is made easier.

Power Steering

With dual rams and twin hydraulic pumps, steering with heavy loads and active implements is as effortless as driving unladen.

Twin Live Drive Clutch

With the twin position live drive clutch, both the drive and the PTO transmissions are quickly and easily selectable.

4 Hydraulic Spool Valves

The rear mounted spool valves allow the fitting of a choice forward and rear mounted implements and attachments.

Roll Over Protection System

HSE Certified folding roll over protection system for essential safety. Comfortable seat and seatbelt also fitted as standard.

Easy – Lift Bonnet

The self lifting bonnet, on dual gas struts, can be easily activated by a switch on the driver’s console.

European Vehicle Type Approval

Conformation that Foton Tractors meet European Performance and Safety standards. EC Directive 2003/37/EC



Engine
Engine Model National Engines
Engine Gross Power 45hp / 29.4 kw
Rated Speed 2400 rpm
No. of Cylinders 3 Cylinders
Fuel Type Diesel
Aspiration Natural
Displacement 2870cc
Fuel Tank Capacity 40 litres
Pre Heating System Glow Plugs

Transmission
Transmission Manual
No. of Travel Speed Forward/Reverse 8 Forward 8 Reverse

Power Take Off
P.T.O. Type Dual Speed, Semi Independent
P.T.O. Power 26.5 Kw
P.T.O. Speed 540/1000rpm

Brakes and Clutch
Brakes Wet disc
Clutch Dry, Dual Stage Type

Dimensions w/Ag Tyres 4WD 2WD
Wheelbase 1990mm 1924mm
Front Tread 1250mm
Rear Tread 1100 ~ 1350mm
Ground Clearance 280mm
Turning Radius w/Brake 3400mm
Turning Radius wo/Brake 4100mm
Length with 3 point linkage
Width
Height from top of ROPS

Hydraulics
Total Pump Flow 25.6 litres/minute
Max. Hydraulic Working Pressure 16.5 Mpa
No. of Spool Valves 4

3 Point Linkage
Standard Category Cat. 1
Lift Capacity 10 Kn
Control Type Position, Draught Mixed

Weight 4WD 2WD
Weight with Ag Tyres w/ROPS 2080 kg 1940 kg

Tyres
Ag 4WD Front 8.3 – 20
Ag 4WD Rear 12.4 – 28

Standard Equipment
Foldable ROPS (90 and 45 degree positions)
PTO Guard
Swinging Draw Bar
Rear PTO
Dry Dual Clutch
Rear Differential Lock
3 Point Hitch with multiple position stabiliser
Comfortable, adjustable sprung seat with seat belt
Front Weights with Tow Hitch
Lockable Tool Box
4 Hydraulic Spool Outlets for Hydraulic Implement Control
Hydrostatic Power Steering
Hand and Foot operated throttle
Road Legal head lights and rear ploughing light
Manual Engine Stop Knob
Wet disc brakes
Selectable 4WD

Optional Equipment
www.danelander.co.uk

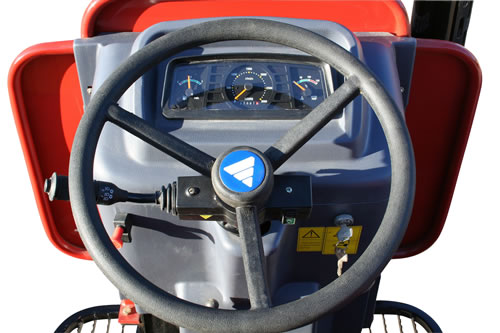

Instrument Panel
Hour meter
Coolant temperature gauge
Electrical tachometer
Fuel gauge
Engine oil pressure warning light
High Beam, Indicator, hazard Warning Lights
Glow Plug Light
Battery Charging Warning Light
